How to Create an Escalade Loader Using Only HTML and Tailwind CSS
Learn how to create an escalade loader from scratch using HTML and Tailwind CSS.
Introduction

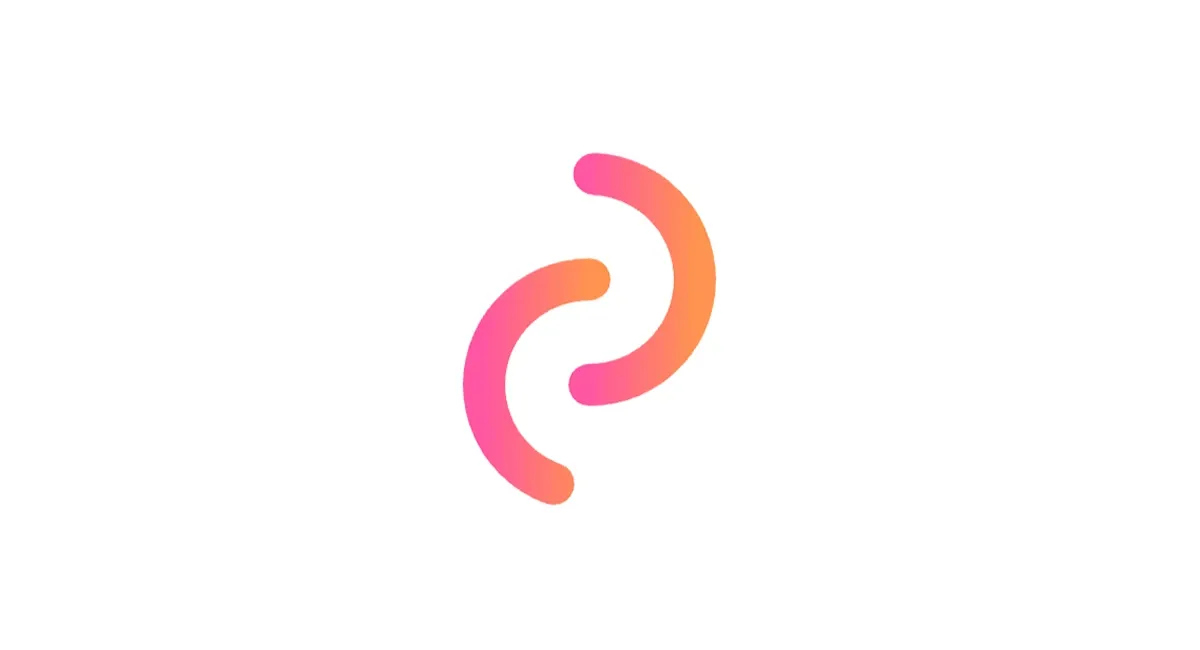

An escalade loader is a type of web animation where visual elements move up in a staggered pattern, simulating the appearance of climbing a ladder. There are many variations of this, but here’s the one we will be building, inspired by Vitaly Silkin’s Dribbble shot:
We’ll recreate the animation using only HTML and Tailwind CSS.
An escalade loader is ideal for animations shown while a user waits for an activity to complete, especially when that activity represents progress from one step or level to the next.
Prerequisite
This article assumes you can write basic HTML and Tailwind CSS. If not, I recommend familiarising yourself with those before proceeding.
Setting up Tailwind CSS
Before setting up Tailwind CSS, create a file named index.html
. Then open it
in your code editor and browser. Inside the file, paste the following starter
HTML structure:
<!DOCTYPE html><html lang="en"> <head> <meta charset="UTF-8" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>Escalade Loader</title> </head> <body></body></html>
Tailwind CSS is usually installed via package managers like npm
in larger
projects. That’s fine for full apps but overkill for a quick demo.
Fortunately, we can use Tailwind CSS in an HTML file without installing it. We
do this by simply adding the Tailwind CSS CDN script tag within the <head>
of
our HTML file:
<!DOCTYPE html><html lang="en"> <head> <meta charset="UTF-8" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>Escalade Loader</title> <script src="https://cdn.jsdelivr.net/npm/@tailwindcss/browser@4"></script> </head> <body></body></html>
A CDN (content delivery network) is like a team of delivery trucks stationed all around the world. Instead of having to drive from the warehouse every time you want something, the truck closest to you brings it much faster. When you add that line to your HTML, you’re telling the browser, “Hey, before showing the page, go to this CDN link and load Tailwind CSS tools from there.”
Under the hood, your browser sees that <script>
tag, quickly connects to the
nearest jsDelivr server, and downloads the Tailwind CSS JavaScript tools. This
JavaScript sets up Tailwind CSS to work in the browser. We can now write
Tailwind CSS classes in our HTML file, and it will apply the styles on the fly.
Building the escalade loader
To place everything we’ll be designing at the centre of the page, add the
following utility class to the <body>
tag:
<!DOCTYPE html><html lang="en"> <head> <meta charset="UTF-8" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>Escalade Loader</title> <script src="https://cdn.jsdelivr.net/npm/@tailwindcss/browser@4"></script> </head> <body class="flex min-h-screen max-w-screen items-center justify-center overflow-x-hidden"></body></html>
To create the loader, we’ll use this algorithm:
-
Draw two small arc-shaped paths using
<svg>
:- One arc curves clockwise upward from bottom to top.
- The second arc curves counterclockwise downward, starting slightly higher and extending lower.
- Each arc is inside its own
<g>
(group), so we can animate them separately.
-
Define a colour gradient (
<linearGradient>
) that is applied as thestroke
of the arcs. -
Apply stroke-based animation to simulate a “ladder climbing” effect:
- The
stroke-dasharray
andstroke-dashoffset
properties are animated to make each arc appear to “draw itself” from nothing to full length. - Then they animate again to “erase” themselves in the same direction.
- The
-
Synchronise the motion to alternate between arcs:
- The first arc starts drawing and sliding upwards.
- After a brief delay, the second arc begins its draw and slide-up animation.
- This results in a staggered, continuous loop: one arc draws while the other clears, then they swap roles.
Taking the first step of the algorithm, update your index.html
with the
following changes:
<!DOCTYPE html><html lang="en"> <head> <meta charset="UTF-8" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>Escalade Loader</title> <script src="https://cdn.jsdelivr.net/npm/@tailwindcss/browser@4"></script> </head> <body class="flex min-h-screen max-w-screen items-center justify-center overflow-x-hidden"> <svg class="h-37.5 w-25 overflow-visible"> <g><path d="M 50,100 A 1,1 0 0 1 50,0" /></g> <g><path d="M 50,75 A 1,1 0 0 0 50,-25" /></g> </svg> </body></html>
overflow-visible
allows the animation we’ll be applying to each <path>
to go
outside the <svg>
box — it’s clipped to the <svg>
by default.
After adding the changes, refresh your browser, and it should look like this:
Next, let’s define the colour gradient and apply it as the stroke
of each
<path>
in the <svg>
:
<!DOCTYPE html><html lang="en"> <head> <meta charset="UTF-8" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>Escalade Loader</title> <script src="https://cdn.jsdelivr.net/npm/@tailwindcss/browser@4"></script> </head> <body class="flex min-h-screen max-w-screen items-center justify-center overflow-x-hidden"> <svg class="h-37.5 w-25 overflow-visible"> <g> <path d="M 50,100 A 1,1 0 0 1 50,0" class="fill-none stroke-[url(#gradient)] stroke-20 [stroke-dasharray:0_157px] [stroke-dashoffset:0px] [stroke-linecap:round]" /> </g> <g> <path d="M 50,75 A 1,1 0 0 0 50,-25" class="fill-none stroke-[url(#gradient)] stroke-20 [stroke-dasharray:0_158px] [stroke-dashoffset:1px] [stroke-linecap:round]" /> </g> <defs> <linearGradient id="gradient"> <stop offset="0%" class="[stop-color:#ff56a1] [stop-opacity:1]" /> <stop offset="100%" class="[stop-color:#ff9350] [stop-opacity:1]" /> </linearGradient> </defs> </svg> </body></html>
The <linearGradient>
was placed within <defs>
to show that it will not be
rendered directly but referenced at a later time to display it. Inside
<linearGradient>
, we defined a smooth colour blend from pink (#ff56a1
) at
the start, to orange (#ff9350
) at the end. Finally, we apply it to the
stroke
of each <path>
in the <svg>
by referencing it using its id
attribute.

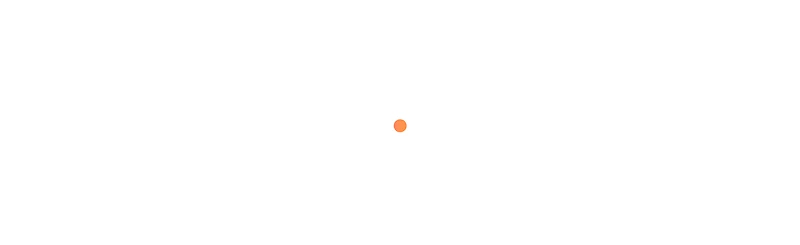

After adding the changes, refresh your browser, and it should look like this:
Next, let’s create the animation to simulate the “ladder climbing” effect. We’ll
define two animations. The first will be applied to each <g>
to make it appear
as if it’s moving from bottom to top. The second will be applied to each
<path>
to simulate the drawing and erasing of the stroke using
stroke-dasharray
and stroke-dashoffset
:
<!DOCTYPE html><html lang="en"> <head> <meta charset="UTF-8" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>Escalade Loader</title> <script src="https://cdn.jsdelivr.net/npm/@tailwindcss/browser@4"></script> <style> @keyframes slide-up { 0% { transform: translateY(-50px); } 100% { transform: translateY(50px); } }
@keyframes climb { 0% { stroke-dasharray: 0 157px; stroke-dashoffset: 0; } 50% { stroke-dasharray: 157px 157px; stroke-dashoffset: 0; } 100% { stroke-dasharray: 157px 157px; stroke-dashoffset: -156px; } } </style> </head> <body class="flex min-h-screen max-w-screen items-center justify-center overflow-x-hidden"> <svg class="h-37.5 w-25 overflow-visible"> <g class="animate-[slide-up_2s_linear_infinite]"> <path d="M 50,100 A 1,1 0 0 1 50,0" class="animate-[climb_2s_cubic-bezier(0.8,_0,_0.2,_1)_infinite] fill-none stroke-[url(#gradient)] stroke-20 [stroke-dasharray:0_157px] [stroke-dashoffset:0px] [stroke-linecap:round]" /> </g> <g class="animate-[slide-up_2s_linear_infinite]"> <path d="M 50,75 A 1,1 0 0 0 50,-25" class="animate-[climb_2s_cubic-bezier(0.8,_0,_0.2,_1)_infinite] fill-none stroke-[url(#gradient)] stroke-20 [stroke-dasharray:0_158px] [stroke-dashoffset:1px] [stroke-linecap:round]" /> </g> <defs> <linearGradient id="gradient"> <stop offset="0%" class="[stop-color:#ff56a1] [stop-opacity:1]" /> <stop offset="100%" class="[stop-color:#ff9350] [stop-opacity:1]" /> </linearGradient> </defs> </svg> </body></html>

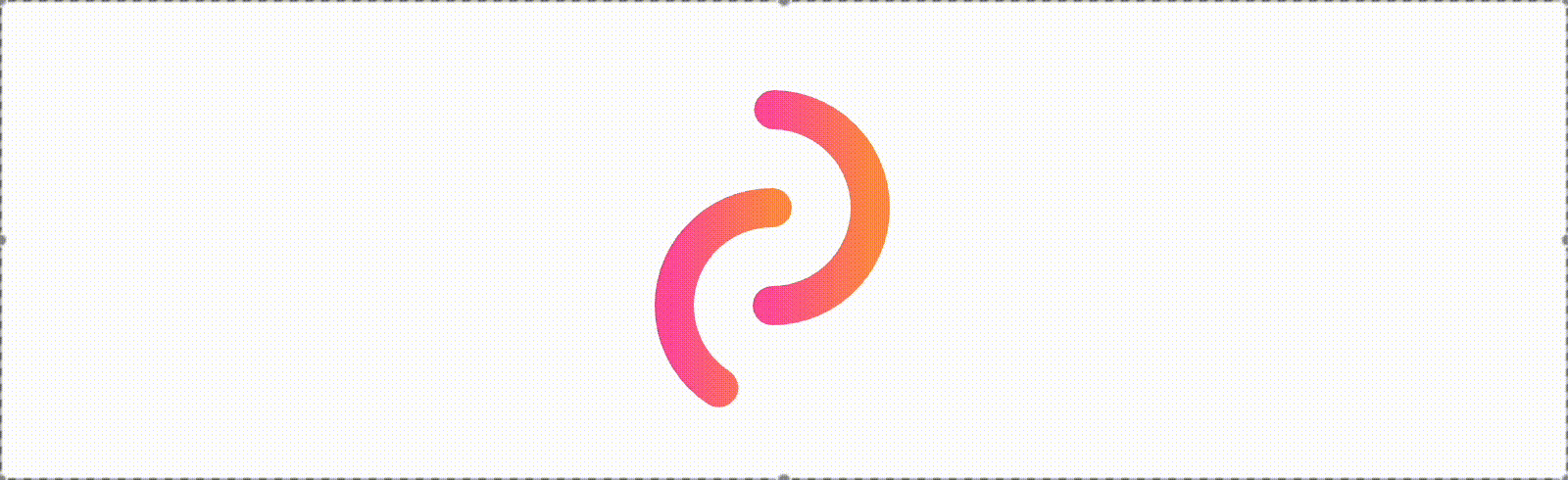

After adding the changes, refresh your browser, and it should look like this:
Finally, let’s synchronise the motion to alternate between the two <path>
. To
achieve this, add a half-second animation delay to the second arc — that is, the
second <g>
and <path>
, respectively:
<!DOCTYPE html><html lang="en"> <head> <meta charset="UTF-8" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <title>Escalade Loader</title> <script src="https://cdn.jsdelivr.net/npm/@tailwindcss/browser@4"></script> <style> @keyframes slide-up { 0% { transform: translateY(-50px); } 100% { transform: translateY(50px); } }
@keyframes climb { 0% { stroke-dasharray: 0 157px; stroke-dashoffset: 0; } 50% { stroke-dasharray: 157px 157px; stroke-dashoffset: 0; } 100% { stroke-dasharray: 157px 157px; stroke-dashoffset: -156px; } } </style> </head> <body class="flex min-h-screen max-w-screen items-center justify-center overflow-x-hidden"> <svg class="h-37.5 w-25 overflow-visible"> <g class="animate-[slide-up_2s_linear_infinite]"> <path d="M 50,100 A 1,1 0 0 1 50,0" class="animate-[climb_2s_cubic-bezier(0.8,_0,_0.2,_1)_infinite] fill-none stroke-[url(#gradient)] stroke-20 [stroke-dasharray:0_157px] [stroke-dashoffset:0px] [stroke-linecap:round]" /> </g> <g class="animate-[slide-up_2s_linear_infinite] [animation-delay:0.5s]"> <path d="M 50,75 A 1,1 0 0 0 50,-25" class="animate-[climb_2s_cubic-bezier(0.8,_0,_0.2,_1)_infinite] fill-none stroke-[url(#gradient)] stroke-20 [animation-delay:0.5s] [stroke-dasharray:0_158px] [stroke-dashoffset:1px] [stroke-linecap:round]" /> </g> <defs> <linearGradient id="gradient"> <stop offset="0%" class="[stop-color:#ff56a1] [stop-opacity:1]" /> <stop offset="100%" class="[stop-color:#ff9350] [stop-opacity:1]" /> </linearGradient> </defs> </svg> </body></html>

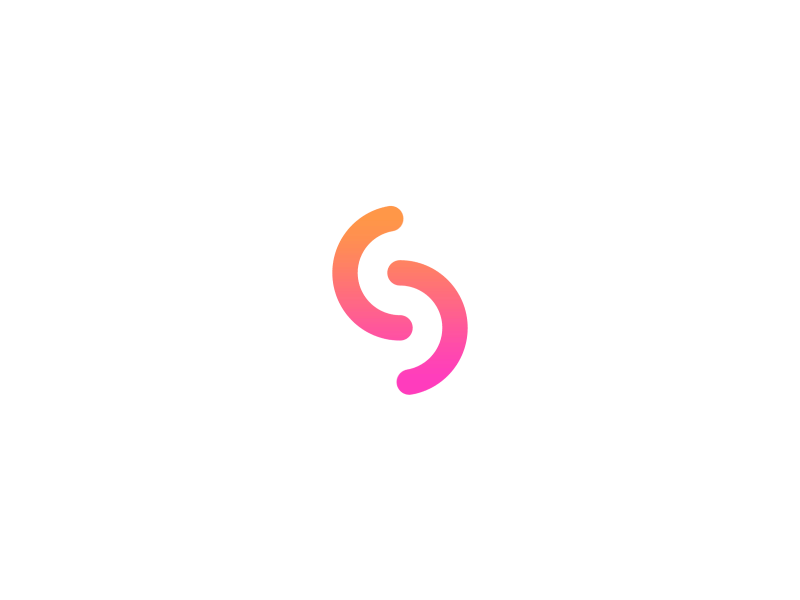

After adding the changes, refresh your browser, and it should look like this:
That’s it! We did it.
Conclusion
This brings us to the end of this article. We created the escalade loader animation from scratch using only HTML and Tailwind CSS. More importantly, we went through each step of the animation, understanding how each part works.
I hope you learned a thing or two about Tailwind CSS and animations on the web. If you did, that’s great, and if you didn’t, please go through the article again, I’m sure you will.
Remember, “hackers hack, crackers crack, and whiners whine. Be a hacker.” Thanks for reading.
